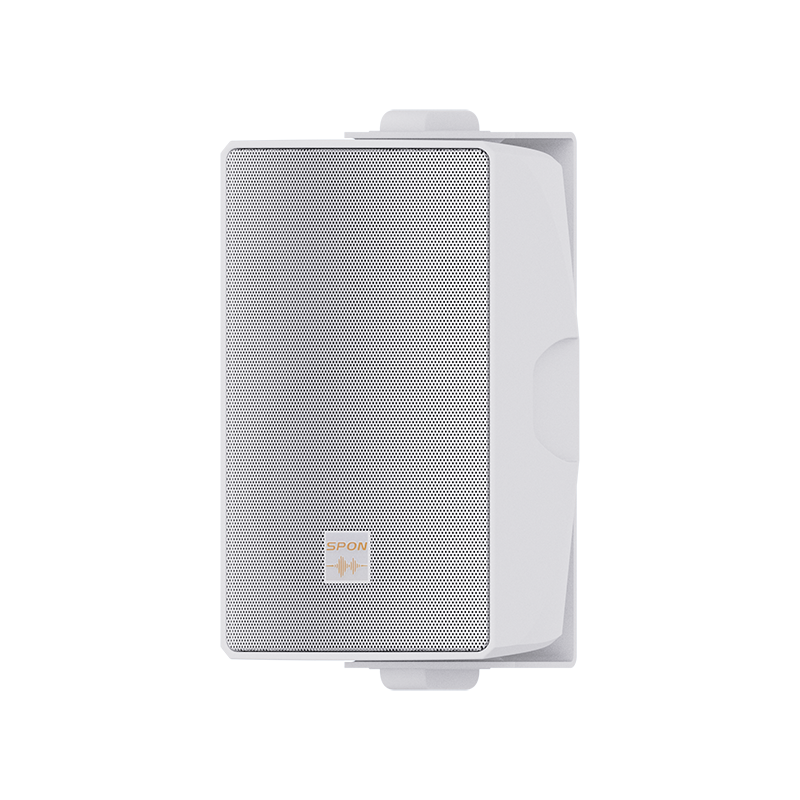

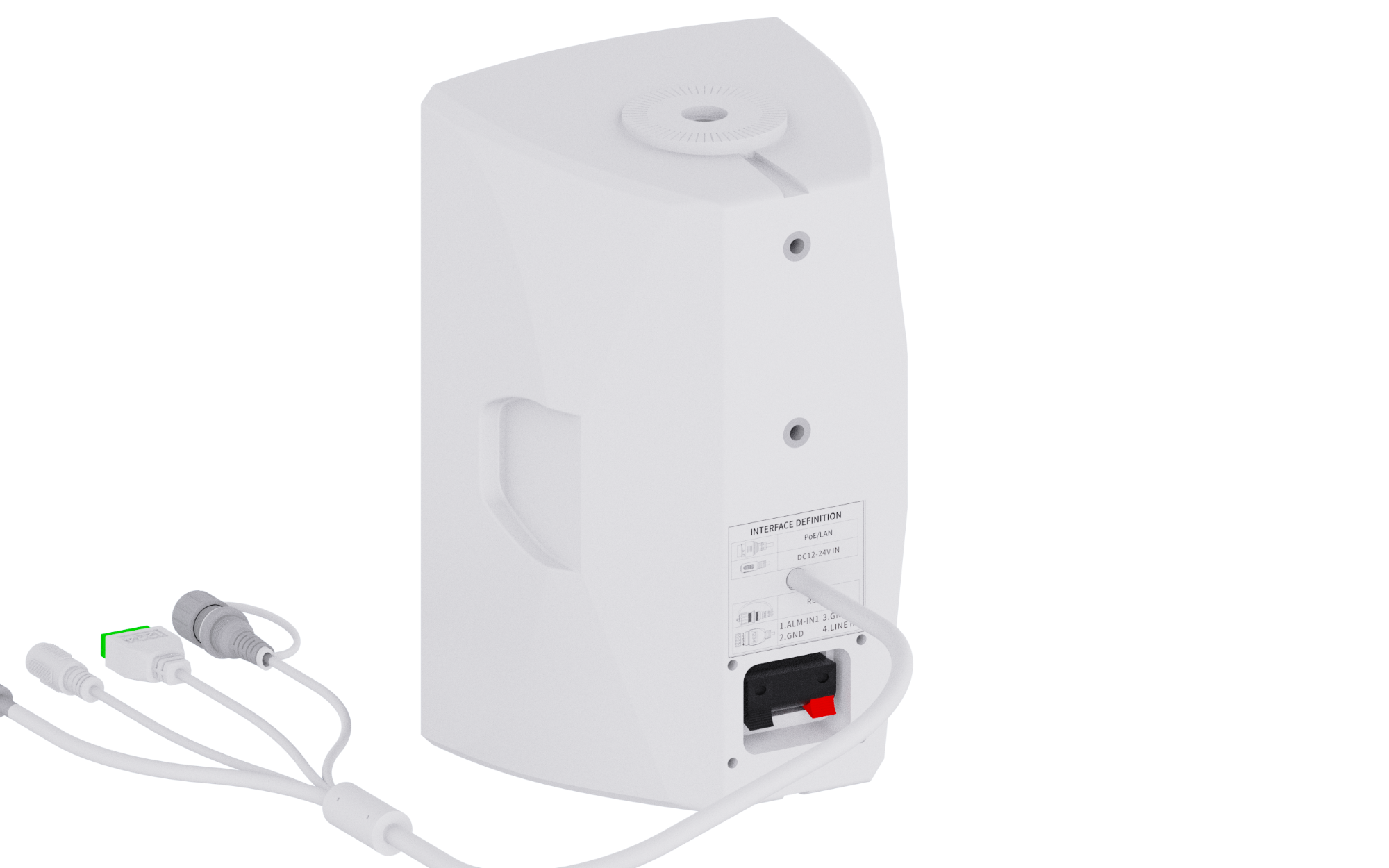

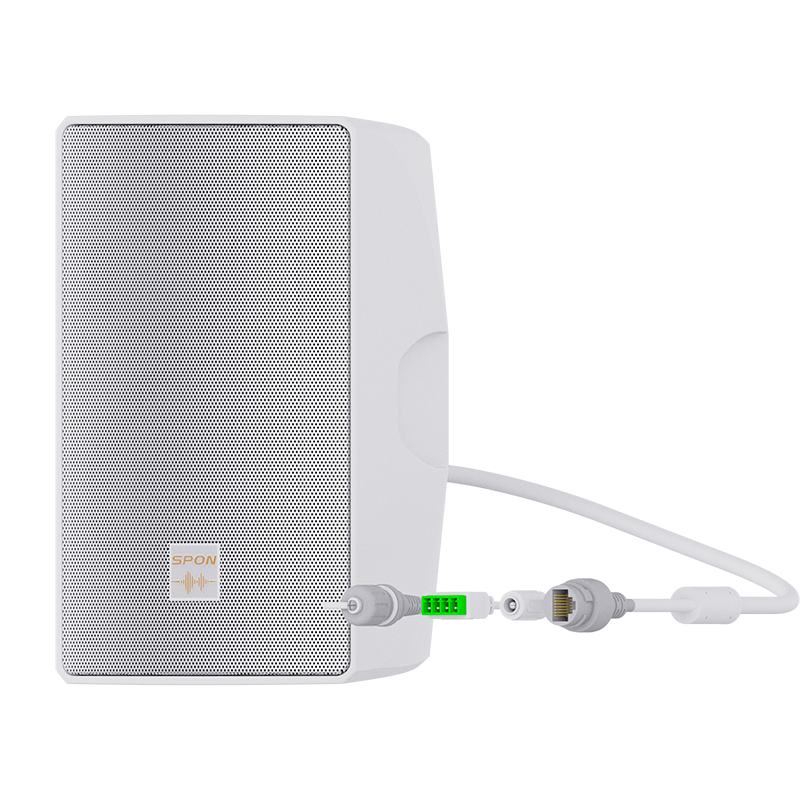

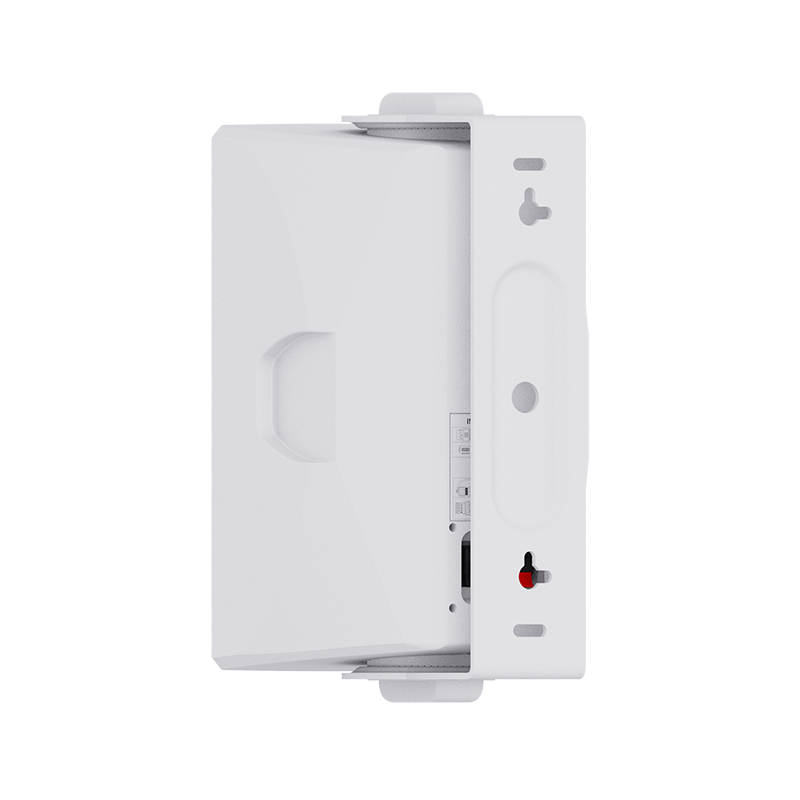

IP Network Box Speaker

Key Features

• 4" woofer + 0.5" tweeter

• Built-in Class-D amplifier

• Supports PoE or DC power (12 V / 24 V)

• Frequency response: 140 Hz – 20 kHz

• Wide audio coverage with multi-angle dispersion

Audio Performance

• Sensitivity: 88 dB (1 M / 1 W / 1 kHz)

• Max SPL: 98 dB (1 M / 10 W / 1 kHz)

• Supports audio codecs: Opus, G.711 µ/ a, G.722

• Audio formats: WAV, MP3; up to 48 kHz, 8–16 bit, mono/stereo

• Built-in storage: Up to 20 files, 80 MB

• SNR: ≥90 dB

Coverage Pattern

Microphone

• Type: Electret condenser, built-in

• Omni-directional

• Sensitivity: –45 ± 3 dB

• Max Input: 110 dB (THD <1%)

• SNR: 58 dB

Power Options

• 7 W: DC 12 V / PoE

• 10 W: DC 24 V
